DASCOM DC-8600 PRO

DC-8600 PRO – The Next Generation of DASCOM Retransfer Card Printing

The DC-8600 PRO sets new standards in professional card printing. As DASCOM’s next-generation retransfer printer, it combines outstanding print quality, high productivity, and maximum flexibility for demanding card personalization applications.

Available in two model variants, the DC-8600 PRO offers a card input capacity of up to 450 cards. With a print speed of up to 170 full-color cards per hour and XL ribbons capable of producing up to 1,000 prints, it is ideally suited for medium- to high-volume card issuance projects.

Both models come standard with USB and Ethernet connectivity, ensuring seamless integration into existing IT environments. Convenient printer management and configuration can be performed via any web browser using the DASCOM WebPanel.

Key Features at a Glance

XL color ribbon for up to 1,000 prints
High-resolution 600 dpi printing
Fast printing for high-volume card issuance
Full over-the-edge card printing
Card input capacity of up to 450 cards
Encoder-ready design for future upgrades
Professional retransfer technology for superior print Quality

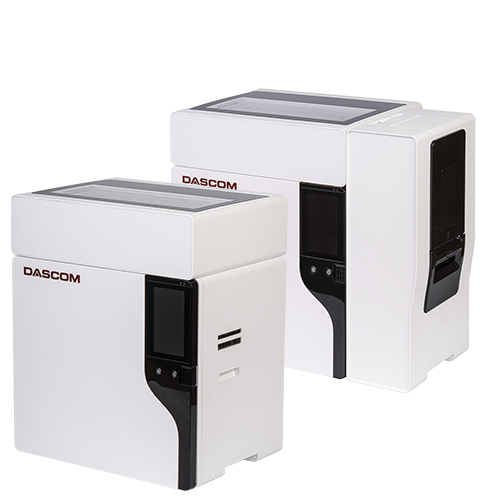

Model Variants
DC-8600 PRO Standard Model
DC-8600 PRO with Second Card Hopper

DC-8600 PRO Card Printer

Specification Description
Resolution      600 x 600 dpi
Print Method  Retransfer Printing
Print Speed     Single-sided: up to 170 cards/hour
Dual-sided: up to 83 cards/hour
Interfaces        1 × USB
1 × Ethernet
Card Format  ISO ID-1 / CR-80
Card Thickness            0.25 – 1.1 mm
